16 port Switch 10 100 1000 Gigabit Deskto

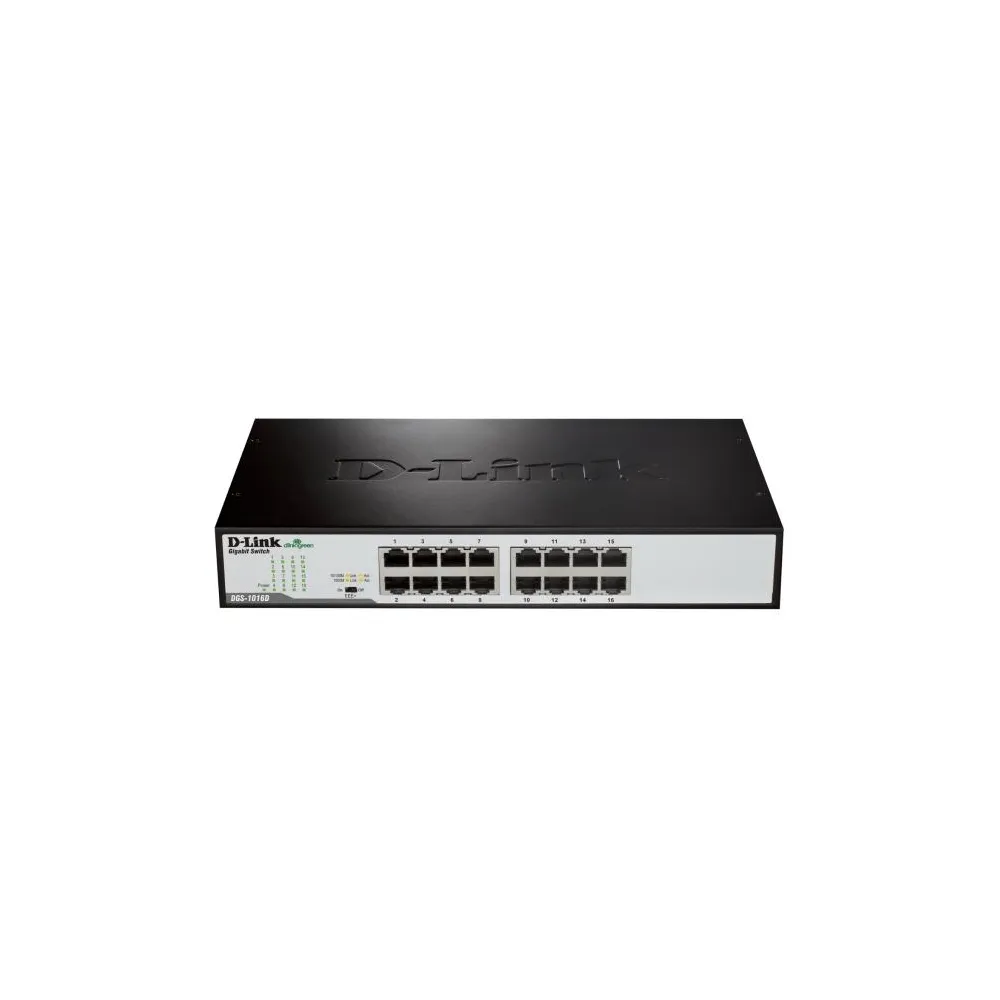

16-port 10/100/1000 Gigabit Desktop Switch, Unmanaged Copper Gigabit Ethernet Switch, 8 x 10/100/1000Mbps Auto-Negotiating Ports, Auto-Negotiation of MDI-II / MDI-X Cross Over for Easy Expansion, Half-/Full-Duplex, IEEE 802.3x Flow Control, Energy Efficient Ethernet (802.3az) compatible, Kensington Security-Slot and grounding screw (back side), Rackmount Kit for Installation in 19" Rack supplied, Internal universal power supply 100-240V 0.20A Key Features ƒƒD-Link Green Technology ƒƒPower saving by cable length detection and link status ƒƒInexpensive Gigabit solution for SOHO/SMB ƒƒSilent, fanless design ƒƒAuto MDI/MDI-X crossover for all ports ƒƒStore-and-forward switching scheme ƒƒFull/half-duplex for Ethernet/Fast Ethernet speeds ƒƒIEEE 802.3x Flow Control ƒƒSupports 9,600Bytes Jumbo Frames ƒƒSupports IEEE 802.1p QoS (4 Queues, Strict Mode) ƒƒSupports Cable Diagnostics Function ƒƒSupports D-Link’s unique EEE+ mode ƒƒRoHS compliant ƒƒPlug-and-play installation Number of Ports 16 Gigabit ports Switching Fabric 32 Gbps switching fabric Standards ƒƒIEEE 802.3 10BASE-T Ethernet (twistedpair copper) ƒƒIEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ƒƒIEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) ƒƒANSI/IEEE 802.3 NWay auto-negotiation ƒƒIEEE 802.3x Flow Control ƒƒIEEE 802.1p QoS (4 queues, strict mode) ƒƒIEEE802.3az EEE Protocol ƒƒCSMA/CD Data Transfer Rates ƒƒEthernet: ƒƒ10 Mbps (half duplex) ƒƒ20 Mbps (full duplex) ƒƒFast Ethernet: ƒƒ100 Mbps (half duplex) ƒƒ200 Mbps (full duplex) ƒƒGigabit Ethernet: ƒƒ2000 Mbps (full duplex) Topology ƒƒStar Network Cables ƒƒ10BASE-T: ƒƒUTP CAT 3, 4, 5/5e (100 m max.) ƒƒEIA/TIA-586 100-ohm STP (100 m max.) ƒƒ100BASE-TX, 1000BASE-T: ƒƒUTP CAT 5/5e (100 m max.) ƒƒEIA/TIA-568 100-ohm STP (100 m max.) Media Interface Exchange ƒƒAuto MDI/MDI-X adjustment for all ports LED Indicators ƒƒPer port: Link/Activity/Speed ƒƒPer device: Power Transmission Method ƒƒStore-and-forward MAC Address Table ƒƒ8K entries per device MAC Address Learning ƒƒAutomatic update Packet Filtering/Forwarding Rates (half duplex) ƒƒEthernet: 14,880 pps per port ƒƒFast Ethernet: 148,800 pps per port ƒƒGigabit Ethernet: 1,488,000 pps per port RAM Buffer ƒƒ512 KB per device Power Consumption ƒƒStandby: 3.8 watts ƒƒMaximum: 11.0 watts Heat Dissipation ƒƒStandby: 12.958 BTU/h ƒƒMaximum: 37.51 BTU/h Acoustics ƒƒ0 dB MTBF 1,087,450 hours Operating Temperature ƒƒ0 ° to 40 °C (32 ° to 104 °F) Storage Temperature ƒƒ-10 ° to 70 °C (14 ° to 158 °F) Storage Humidity ƒƒ5% to 90% RH non-condensing Dimensions ƒƒ280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inches) Weight 1.59 kg (3.51 lbs)
