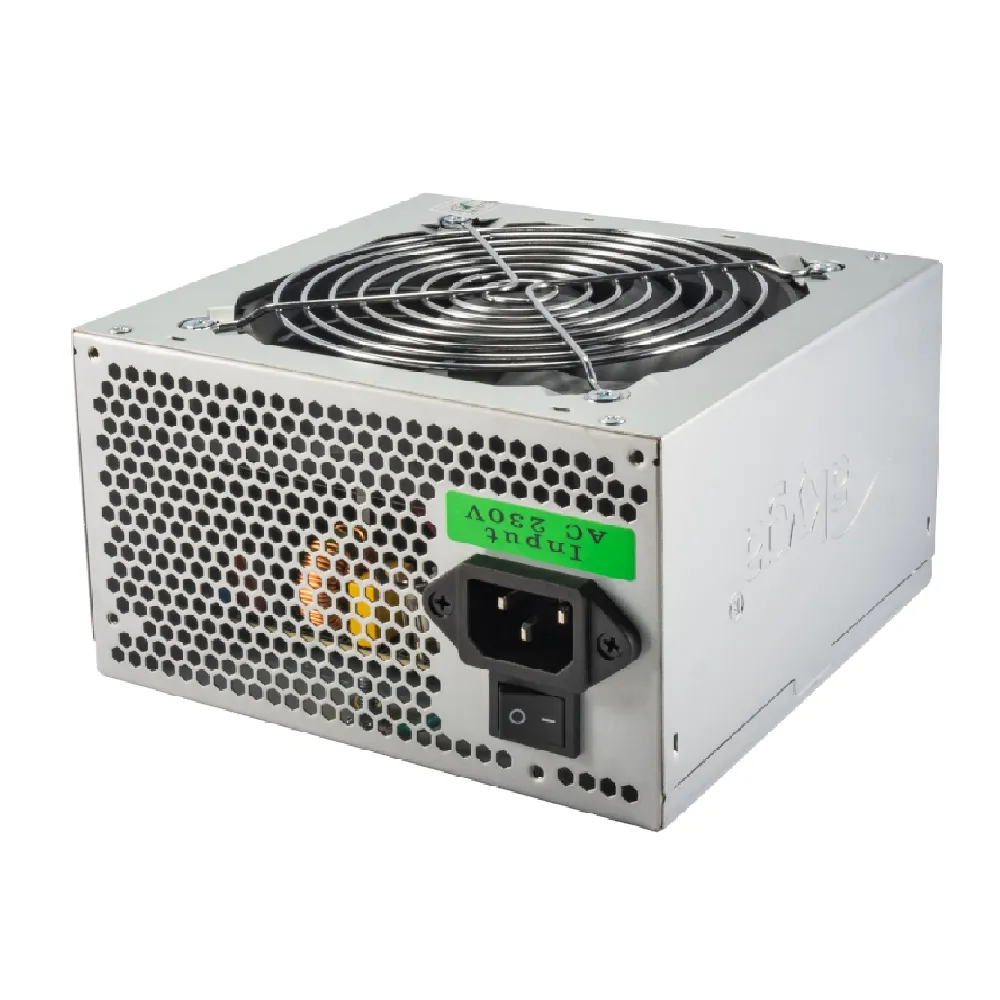

Tápegység 550W 12cm PFC 80+ Akyga Basic
Technikai Specifikáció, műszaki Info :
.+3.3V: 30A, +5V: 28A, +3.3V i +5V:241W, +12V: 22A, 12V: 264W, 20+4 pin, PCI-Ex(6pin) 1pc, ATX12V (P4), Molex (4- pin): 2pcs, mini-Molex (4-pin) 1pc, SATA 3pcs, OVP, OCP, OPP, OTP, SCP, Fan
Type of the product ATX Power Supply
Format ATX 2.0
Input voltage 230V / 50Hz
Current on the +3.3V rail 32 A
Current on the +5V rail 28 A
The combined power of +3.3V and +5V 245 W
Current on the +12V rail 26 A
Maximum load on 12V line 312 W
Maximum DC output 550 W
Mainboard Power connector MPC (P1) 20+4 pin
Power connector ATX12V (P4) Yes
Power connector PCI-E (6-pin) 1 pcs
Power connector Molex (4-pin) 2 pcs
Power connector mini-Molex (4-pin) 0 pcs
Power connector SATA 3 pcs
Power Factor Correction Yes ( passive )
Over Voltage Protection (OVP) Yes
Over Current Protection (OCP) Yes
Over Power Protection (OPP) Yes
Over Temperature Protection (OTP) Yes
Short Circuit Protection (SCP) Yes
Fan size 120 mm
Fan adjustments Automatic
Power cord included No
Box Cardboard
Product dimensions (length * width * height) 150 x 140 x 85 mm
Certification CE, RoHS
EAN Code 5901720130341
